IPAM Sync¶

What the sync writes¶

• Sync current address leases → NetBox IPAddress (status dhcp)
• Sync current DHCPv6 delegated-prefix leases → NetBox Prefix, when lease sync and Prefix sync are both on
• Sync reservations → NetBox IPAddress (status reserved)
• Sync button on individual leases and reservations
• Bulk sync for entire lease tables
• Pending-change detection: badge on leases where a reservation exists at a different IP
• MAC address sync → NetBox MACAddress
• Sets dns_name on IPAddress for automatic DNS sync via netbox-dns IPAM DNSsync

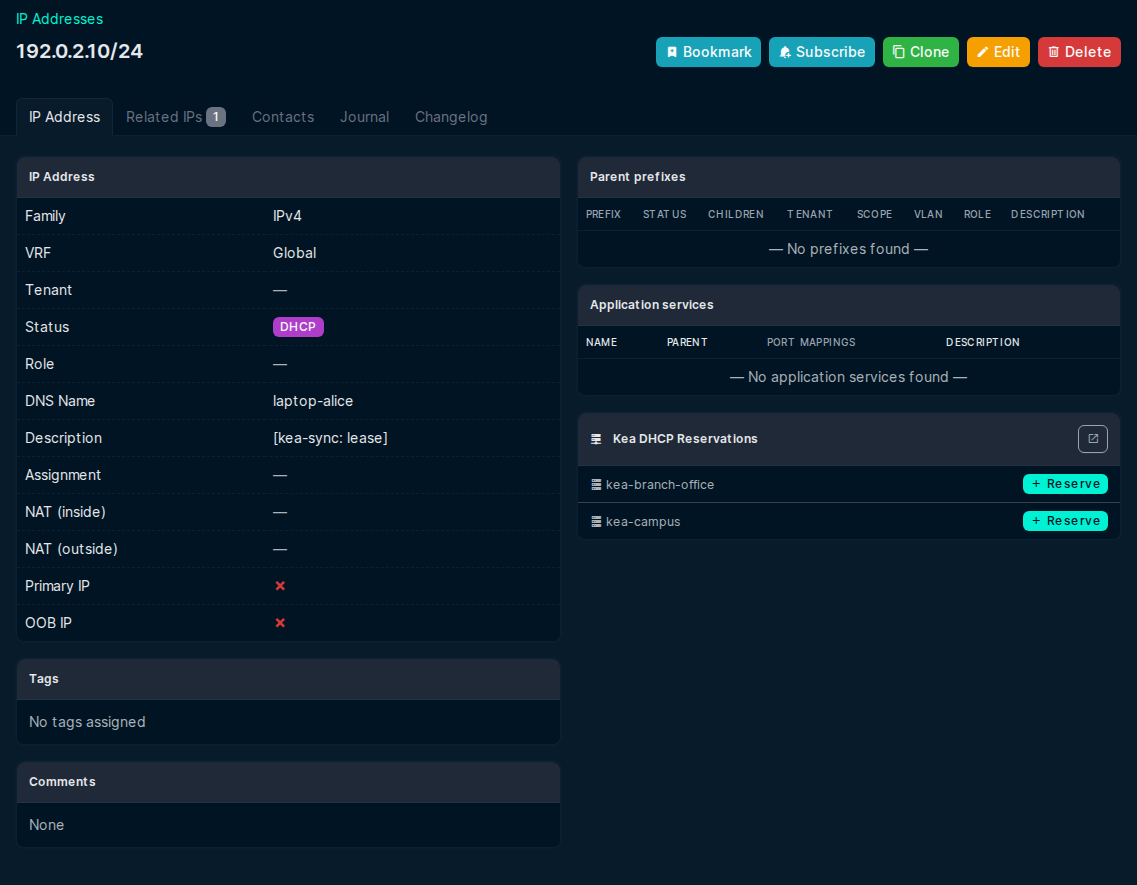

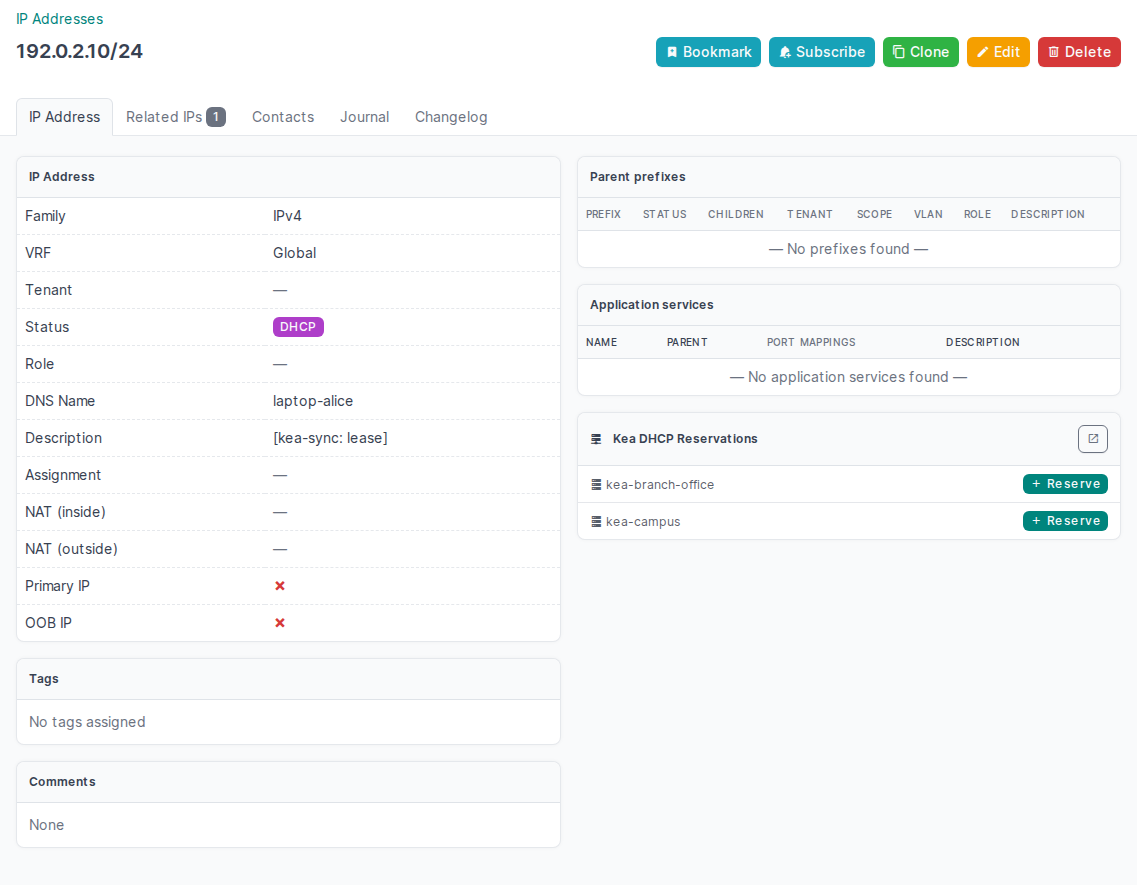

The Sync button of a lease writes the NetBox IP address at once. The button then links to it.

Background IPAM Sync¶

The background sync requires rqworker.

• Automatic Kea→NetBox IPAM sync on a configurable interval (default 5 minutes)
• Syncs all current leases and reservations from all configured servers
• Visible in NetBox System → Background Jobs

The Kea IPAM Sync job runs automatically when rqworker is active:

1. Iterates all configured Server objects
2. For each server: fetches all leases (v4 + v6) and all reservations. Only a current lease is an owner: an assigned address or delegated prefix, or a registered address, whose valid lifetime has not ended
3. Creates or updates NetBox IPAddress objects in the server's sync_vrf, and links each one to the server and its source (lease or reservation):
   • Leases → status=dhcp, dns_name set from the lease hostname, without a trailing dot
   • In-subnet reservations → status=reserved, dns_name set from the published name: the reserved hostname with the effective ddns-qualifying-suffix, as Kea gives it to the client
   • An address with both a lease and a reservation → status=active; the reservation hostname wins
   • The MAC address description dhcp_hostname: <name> takes the same name from both sources, so a lease and its reservation do not change it on each run
   • Global reservations create and change no IP address
   • The description starts with the sync marker [kea-sync: <kind>]. Text after the marker is an operator note, and the sync keeps it. To release an address from the sync, remove the marker or move it away from the start.
4. Cleans up stale IPs (the Stale IP Cleanup setting). A server's lease or reservation that Kea no longer reports loses its link. When the last link of every server to an address goes, Stale IP Cleanup applies, but only after a complete lease sync and a complete reservation sync. If the server disables reservation sync, a complete lease sync is sufficient. An unavailable host_cmds hook leaves the reservation source incomplete, because config-file reservations can still exist. Failed or truncated lease reads keep their stale links.
5. Links Subnets to Prefixes and Pools to IP Ranges in the server's sync_vrf. A complete Subnet or Pool phase drops its own stale links. These objects stay unchanged by default and are never deleted. The server that drops the last link can opt in to deprecation with sync_deprecate_prefixes_and_ranges. A deprecated object's last link stays marked stale until an applied report restores its active status, or another owner supersedes the stale link. Removing the description marker releases every link without deprecation. DHCP plugin references prevent deprecation.
6. Links each current DHCPv6 delegated-prefix lease to a Prefix in the server's sync_vrf (source lease-prefix), when lease sync and Prefix sync are both on. The DHCP plugin import owns delegated prefixes through its own source, so neither cleans up the other's links. These Prefixes follow the rules of step 5. A delegated prefix never creates an IP address
7. One server failing does not block others
8. Summary logged per server and in total

Each execution groups its native changelog records under one request ID, including MAC address changes. Sync now records the initiating user. Scheduled runs use the reserved user netbox-kea-sync. A job whose initiating user was deleted also uses system attribution.

The job creates this attribution account inactive, with an unusable password and no permissions. Keep it inactive and without access grants. If an existing account with that name has login access or permissions, the job fails before synchronization and leaves the account unchanged.

Each server's summary reports created, updated, errors, prefix_errors, conflicts, disagreements, skipped, waiting and unclassified. The job total also reports unowned:

• skipped: reservations the sync deliberately did not write: global reservations and reservations that reserve no address. They are not errors and do not fail the job.
• errors: lease and reservation rows that failed to sync, snapshots that could not be read, and reservations that the snapshot could not read. Any error fails the job. A failed snapshot and the first 10 failed rows of each server and IP version are logged at warning level, with the source (lease or reservation), the address and the exception.
• conflicts: IPAM objects that the sync left unchanged: the description of the object does not start with the sync marker (it was created by hand, or an operator removed the marker), or the new marker and the note after it do not fit in the 200-character description. They are deduplicated per server across its phases. Up to 20 of them are named in the summary and the log, so the addresses to look at are visible without trawling debug output.
• disagreements: addresses that two Kea servers report with different facts (the hostname or the prefix length), or that one server reports twice with different facts, for example from two reservations in overlapping subnets. A lease and a reservation disagree only on the prefix length, and an empty hostname makes no claim. The address keeps its values until the reports agree, or until one of them goes.
• unowned: marker objects with no ownership link, including objects left by a deleted server. Only the job total reports this count, because these objects have no owning server. It counts each object once.
• waiting: adopted objects whose cleanup this server held during the run while a potential owner had not completed its initial observations. The job total counts objects still waiting after all servers finish. Counts include each object once across sources and address families.
• unclassified: IP addresses that keep a stale DHCPv6 lease link from before the sync recorded the allocation kind (see "Delegated-prefix leases from earlier releases" below).

View job history, next scheduled time and logs under System → Background Jobs → Kea IPAM Sync.

To change the sync interval, edit it on the Settings page. You do not need to restart the worker: the new interval applies after the next scheduled run.

Manual Sync permissions¶

A manual Sync makes the writes of the automatic sync, and permission constraints do not limit the automatic sync. Thus a manual Sync runs only for an active superuser, or for an active user who has an unconstrained grant of each permission that the Sync can use. An enabled ObjectPermission of the user, or of a group of the user, gives a grant. DEFAULT_PERMISSIONS also gives a grant. A grant is unconstrained when it has no constraint set, or an empty one.

Sync All to NetBox runs only the reservation phase. Its stale cleanup cannot delete an IP address, so it needs no delete permission. When a user does not have a required grant, the Sync control is disabled. Its tooltip names each missing or constrained permission, and the server refuses the request with the same text. A grant that only an LDAP group mapping (FIND_GROUP_PERMS) gives does not count.

Sync to DHCP plugin now also writes the DHCP plugin objects. It needs add and change on DHCP Server, Option, Client Class, Subnet and Host Reservation, and add on Option Definition and Pool. The import never changes a Pool or an Option Definition that exists.

Upgrade to ownership links¶

The first observations adopt marker objects that Kea still reports. No data migration assigns owners. An object with a blank description stays unchanged unless an operator forces a claim. When every configured server uses the same non-global sync_vrf, an unowned marker IP address in the global VRF moves into that VRF with its primary key and changelog intact. A row already owned by another server does not move. A destination address collision keeps the global row unowned and reports a conflict. Servers with different VRFs keep the global row and create their own scoped rows. A global-VRF server adopts it in place.

Adopted objects keep their last link until every potential owner completes all relevant enabled observations. Periodic jobs and DHCP imports record completion separately. An incomplete phase or missing family does not count as complete. Disabled sources and families do not hold the barrier. A Server whose DHCP plugin integration does not run (see Configuration) has no DHCP import to wait for. The read-only ipam_first_complete_at field shows when a server first completed its enabled observations. Newly enabled sources still require complete observations, even when that timestamp is already set.

Stale IP Cleanup set to Remove now also removes the rows of expired leases, deleted Reservations and hostless leases after their final ownership link becomes stale. On upgrade, lease removal applies only to leases that expire after adoption. Rows already stale before the upgrade get no link, stay unchanged and count as unowned. Review these rows before removing them manually.

Delegated-prefix leases from earlier releases¶

Earlier releases synced a DHCPv6 delegated-prefix lease as an IP address at the prefix base. The sync now records the allocation kind on each lease link. DHCPv4 lease links are address links. Existing DHCPv6 lease links start unclassified, because the stored facts cannot show the original kind:

• An address lease that a complete run reads at that address, current or not, classifies the link as an address link.
• A current delegated prefix at that base classifies the link only after a complete run links its Prefix. The normal stale cleanup then retires the old IP address under Stale IP Cleanup, and other owners keep it.
• Prefix sync off, a failed Prefix claim (for example an operator Prefix without the marker) or an incomplete lease read keeps the old link unclassified.
• An unclassified link that Kea no longer reports stays, and the summary counts it as unclassified. Remove the sync marker from the IP address to release it.
