This page shows real-world rules for common vendors and use cases. All YAML snippets can be imported via Interface Name Rules → Import.

Juniper (ge / xe / et)

Juniper uses a three-tier interface naming scheme where the prefix encodes the speed: ge- (1G), xe- (10G), et- (100G / 400G). The suffix follows the FPC/PIC/port convention — for pizza-box ACX devices this simplifies to 0/0/{port}.

Rule overview for ACX7024

Module type pattern Name template Channels Result
QSFP-DD-400G-.* et-0/0/{bay_position} — et-0/0/4
QSFP-100G-.* et-0/0/{bay_position} — et-0/0/7
QSFP28-100G-.* et-0/0/{bay_position} — et-0/0/2
QSFP-4X10G-.* xe-0/0/{bay_position}:{channel} 4 (start 0) xe-0/0/4:0 … xe-0/0/4:3
QSFP28-DD-.* et-0/0/{bay_position}:{channel} 2 (start 0) et-0/0/3:0, et-0/0/3:1
SFP-10G-LR (exact) xe-0/0/{bay_position} — xe-0/0/12
SFP-1G-.* ge-0/0/{bay_position} — ge-0/0/0

YAML (excerpt from contrib/juniper.yaml)

# 100G QSFP28 (all variants) → et-0/0/X
- module_type_pattern: "QSFP-100G-.*"
  module_type_is_regex: true
  device_type: ACX7024
  name_template: "et-0/0/{bay_position}"
  description: "Juniper ACX7024 100GE QSFP28 naming (all variants)"

# 10G SFP+ (exact FK match) → xe-0/0/X
- module_type: SFP-10G-LR
  device_type: ACX7024
  name_template: "xe-0/0/{bay_position}"
  description: "Juniper ACX7024 10GE SFP+ naming"

# 1G SFP (regex) → ge-0/0/X
- module_type_pattern: "SFP-1G-.*"
  module_type_is_regex: true
  device_type: ACX7024
  name_template: "ge-0/0/{bay_position}"
  description: "Juniper ACX7024 1GE SFP naming (all variants)"

Rule priority tip: The exact FK rule for SFP-10G-LR automatically outranks any SFP-10G-.* regex rule at the same scope (score ≥ 1000 vs score ≤ 955). You don't need to remove regex rules to avoid conflicts — the exact FK rule always wins.

Rule detail — Juniper ACX7024 QSFP+ 4×10G breakout

The rule detail page shows the auto-computed priority score and a human-readable label (e.g. regex(13) / device):

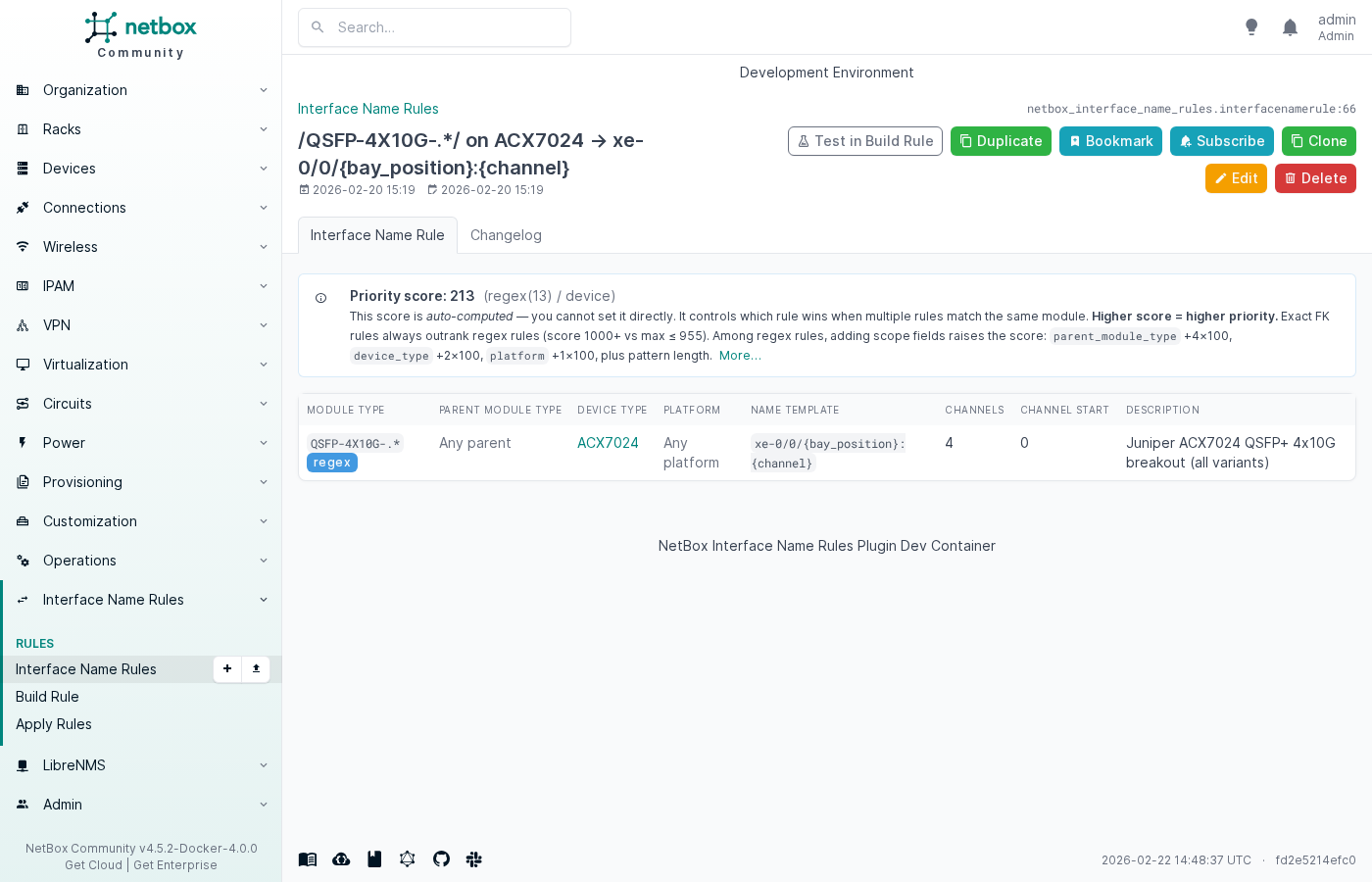

Rule detail for Juniper ACX7024 QSFP+ 4×10G breakout rule, showing priority score 213

Breakout / channel interfaces

When a high-density transceiver (QSFP+, QSFP28, QSFP-DD) is split into multiple lower-speed lanes, each lane needs its own NetBox interface. Set channel_count > 0 and the plugin creates one interface per channel on module install.

Build Rule — Juniper 4×10G breakout (QSFP+ → xe-0/0/4:0 … :3)

Fill in the Build Rule tester to preview results before saving:

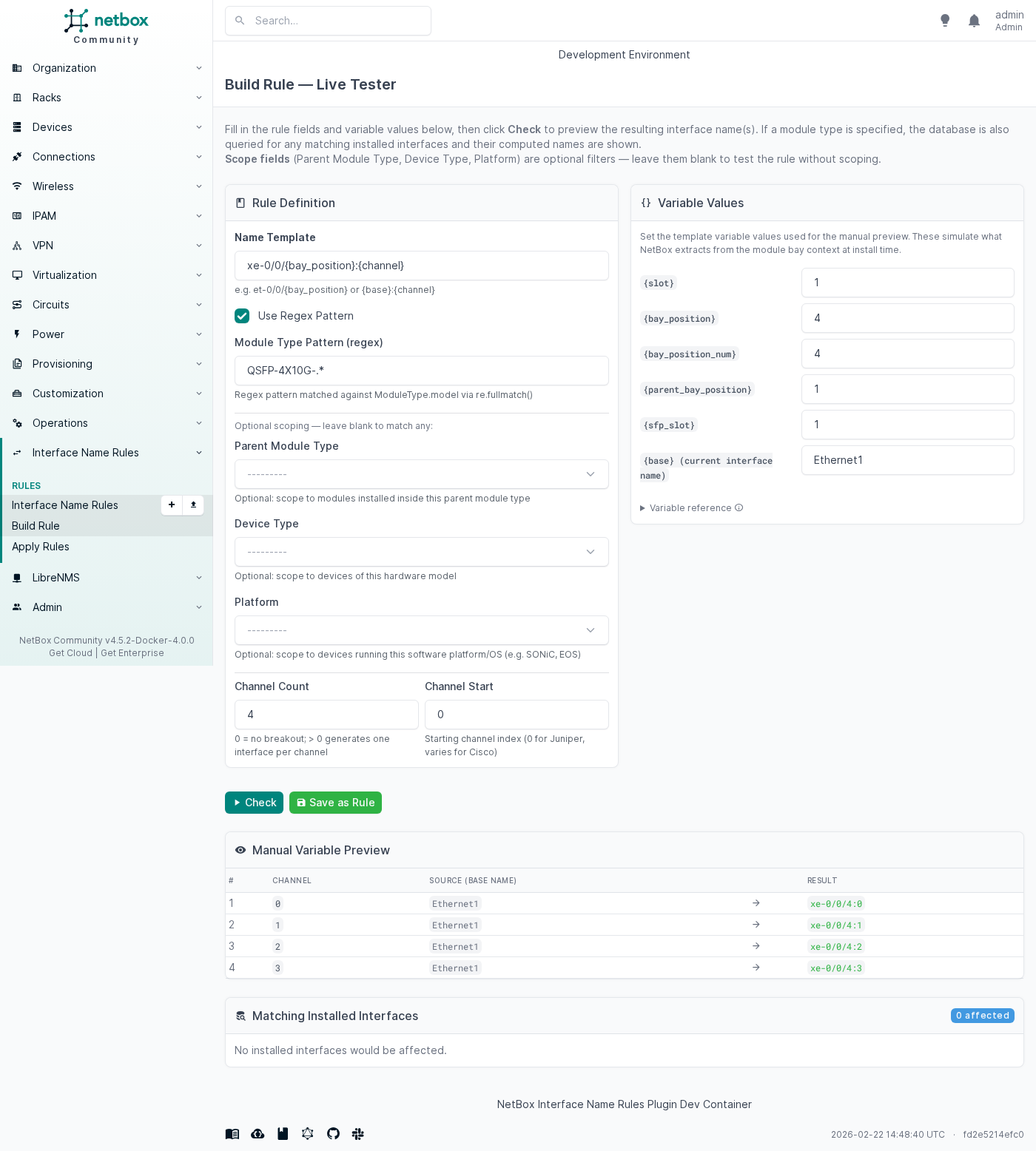

Build Rule tester showing QSFP-4X10G-.* → xe-0/0/{bay_position}:{channel} with 4 channels producing xe-0/0/4:0 through xe-0/0/4:3

The Manual Variable Preview table shows each channel's computed name (xe-0/0/4:0, xe-0/0/4:1, xe-0/0/4:2, xe-0/0/4:3) before you save the rule.

YAML — common breakout rules

# QSFP+ 4×10G → xe-0/0/X:0 … :3  (Juniper ACX)
- module_type_pattern: "QSFP-4X10G-.*"
  module_type_is_regex: true
  device_type: ACX7024
  name_template: "xe-0/0/{bay_position}:{channel}"
  channel_count: 4
  channel_start: 0
  description: "Juniper ACX7024 QSFP+ 4x10G breakout (all variants)"

# QSFP28-DD 2×100G → et-0/0/X:0 … :1  (Juniper ACX)
- module_type_pattern: "QSFP28-DD-.*"
  module_type_is_regex: true
  device_type: ACX7024
  name_template: "et-0/0/{bay_position}:{channel}"
  channel_count: 2
  channel_start: 0
  description: "Juniper ACX7024 QSFP28-DD 2x100G breakout"

# QSFP-DD 400G → 4×100G breakout (SONiC swp notation)
- module_type_pattern: "QSFP-DD-400G-.*"
  module_type_is_regex: true
  platform: SONiC
  name_template: "swp{bay_position_num}s{channel}"
  channel_count: 4
  channel_start: 0
  description: "UfiSpace SONiC — QSFP-DD 400G 4×100G breakout (swp5s0..swp5s3)"

# QSFP-DD 2×100G (Cisco IOS-XR)
- module_type_pattern: "QSFP28-DD-.*"
  module_type_is_regex: true
  device_type: 8201-SYS
  name_template: "HundredGigE0/0/0/{bay_position}/{channel}"
  channel_count: 2
  channel_start: 0
  description: "Cisco 8201-SYS QSFP28-DD 2x100G breakout"

Channelized breakout (NetBox 4.7+)

A breakout rule produces one of two topologies, chosen by breakout_mode:

Mode Result
flat (default) The base interface is renamed to the first channel and the remaining channels are created as sibling interfaces.
channelized The base interface becomes the physical parent (channels set, keeping its pk, type, module link and cable) and one channel subinterface is created per channel (type: channel, bound to the parent by channel_id).

parent_name_template names that parent. It takes the same variables as name_template minus {channel} (the parent is the one interface in the family without a channel number); leave it blank to keep the name NetBox gave the port.

# Juniper ACX7024 QSFP+ 4×10G breakout, modelled as a channelized family:
# et-0/0/5 (parent, 4 channels) + xe-0/0/5:0 … :3 (channel subinterfaces)
- module_type_pattern: "QSFP-4X10G-.*"
  module_type_is_regex: true
  device_type: ACX7024
  name_template: "xe-0/0/{bay_position}:{channel}"
  parent_name_template: "et-0/0/{bay_position}"
  breakout_mode: channelized
  channel_count: 4
  channel_start: 0
  description: "Juniper ACX7024 QSFP+ 4x10G channelized breakout"

{channel} is channel_start + channel_id - 1, so NetBox's 1-based channel_id 1…4 render as Juniper's :0 … :3.

The family is built only when every name it needs is free: if the parent's name or any channel name is already taken on the device, the whole family is skipped and logged rather than half created. Switching an existing rule from flat to channelized does not convert the flat interfaces an earlier apply installed — the two topologies are different objects to cabling and automation, so conversion is a separate, explicit operation. A module carrying more interfaces than its module type's templates describe is read as holding such a family: the rule refuses it with a warning naming the module, whatever names the new templates would take.

On NetBox releases that cannot model channels (4.6 and older) a channelized rule is skipped with a warning and nothing is created — it is never quietly applied as a flat breakout.

contrib/juniper-channelized.yaml carries the Juniper breakout families of contrib/juniper.yaml in this mode.

Converting a flat family (NetBox 4.7+)

Devices provisioned before the channelized mode existed carry flat families: four sibling interfaces where NetBox now models a parent and four channels. Apply Rules → Preview & Apply offers to convert them, per family, once the rule is enabled and set to breakout_mode: channelized with a parent_name_template — the flat family has no parent row, so without a parent name there is nowhere for the ch-0 interface to go and nothing is offered. A disabled rule converts nothing, on this page or in the background job.

Conversion is only ever performed from that page, by an operator who confirmed it: Apply renames, it never rewrites a family. Each family gets its own verdict before anything is written, produced by performing the whole conversion inside a transaction that is rolled back again — so a family that NetBox would reject is reported with NetBox's own reason (a cabled sibling, an occupied parent name, a missing sibling, a sibling already channelized, a sibling that is already a channel of another parent) instead of being half converted. Selecting a blocked family converts the others and skips that one.

What the conversion does to the ch-0 row, per family:

Stays on the physical row (same interface ID) Moves to the new channel 1 interface
cable, interface type, module link, mark_connected IP addresses, FHRP group assignments, untagged/tagged VLANs, 802.1Q mode, MTU, description, tags

Custom field values are copied to the channel rather than moved, because they can describe either the port or the link. The remaining siblings are retyped in place, so their own addresses, descriptions and tags — and their interface IDs — survive.

The caveat worth reading twice: the ch-0 interface keeps its ID and becomes the parent. Automation, saved filters or external systems keyed on that ID will address the physical port afterwards, not the channel that inherited its name.

Producing a verdict means performing the whole conversion and rolling it back, so the page pays that cost per family it lists. It therefore lists at most apply_batch_limit families (50 by default, the same cap the apply preview uses) and says so when more are waiting, and it refuses a confirmation naming more than that many rather than converting part of it. Convert as Background Job runs every convertible family of the rule and is not capped.

On NetBox 4.6 and older no family is offered and no conversion section is shown.

Partial breakout repair

If a device was provisioned partially (e.g. only 2 of 4 channels were created manually), run Apply Rules → Preview & Apply for the matching rule. The engine detects the missing channels and creates only those — existing interfaces are left unchanged.

Build Rule — SONiC QSFP-DD 4×100G breakout

Build Rule tester showing QSFP-DD-400G-.* → swp{bay_position_num}s{channel} with 4 channels at swp5s0..swp5s3

SONiC / UfiSpace whitebox switches

UfiSpace whitebox switches (S9610-36D, S9610-46DX, S9700-53DX, …) run SONiC and use the swpX naming convention. Breakout ports use swpXsY (0-based channel index).

See contrib/ufispace.yaml for platform-scoped rules (requires a "SONiC" Platform object in NetBox) and contrib/ufispace-device-type.yaml for device-type-scoped rules (no Platform required). Load only one of the two files to avoid ambiguity.

Rule detail — SONiC platform-scoped catch-all

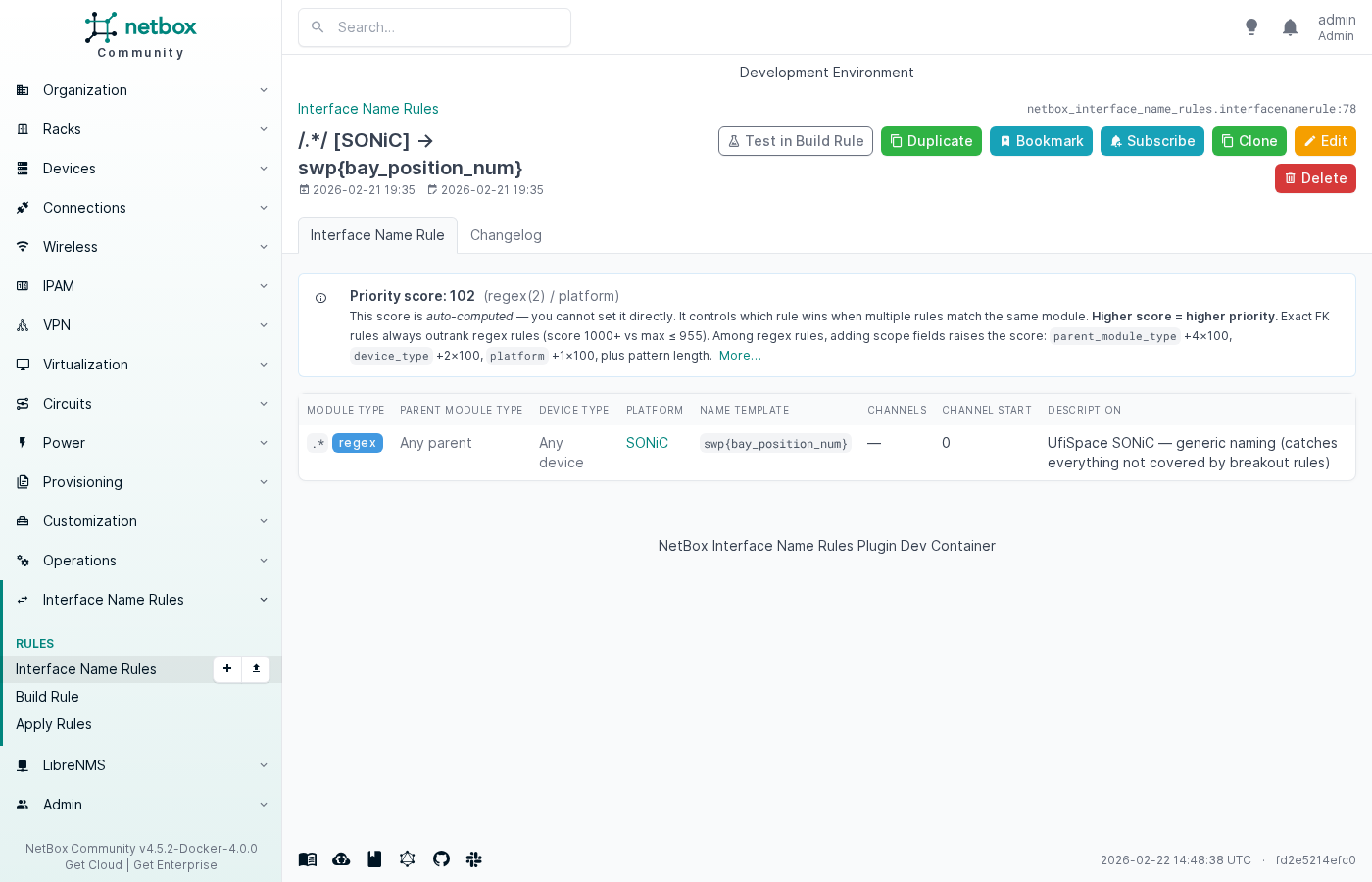

Rule detail for SONiC catch-all rule, showing platform scope and priority score 102

Linux servers

Linux servers with pluggable SFP/QSFP ports benefit from this plugin when you track the physical optics in NetBox module bays. The interface name is determined by the host's naming scheme, not the transceiver type.

Naming conventions

Scheme Example When to use
Traditional eth0, eth1 Containers, VMs, hosts with net.ifnames=0
systemd predictable ens1f0, ens1f1 Bare-metal servers with PCI slot-based names
systemd onboard eno1, eno2 Motherboard/onboard NICs
Mellanox sub-port eth0d1, eth0d2 QSFP28 hardware breakout (mlx5 driver)
Cumulus / DENT swp1, swp2 Linux NOS on whitebox switches

Build Rule — Linux traditional naming (eth{bay_position_num})

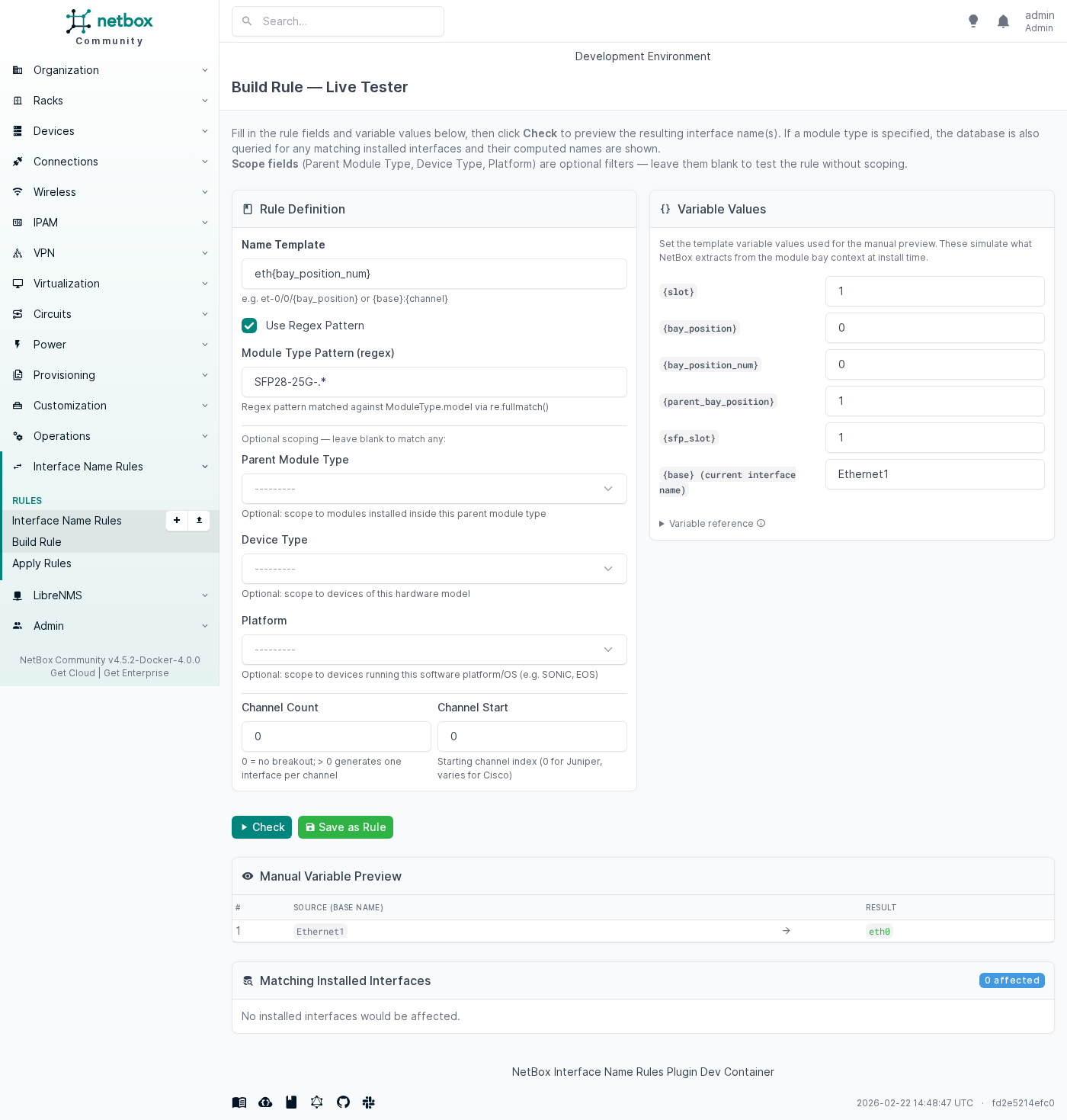

Build Rule tester showing SFP28-25G-.* → eth{bay_position_num} producing eth0

YAML (from contrib/linux.yaml)

# Traditional naming: eth0, eth1, ...  (VMs, containers, legacy bare-metal)
- module_type_pattern: "SFP28-25G-.*"
  module_type_is_regex: true
  name_template: "eth{bay_position_num}"
  description: "Linux server — SFP28 25G traditional naming (eth0, eth1, ...)"

# systemd predictable: ens{slot}f{port}  (bare-metal with udev slot names)
# {slot} = top-level module bay position (NIC card slot number)
# {bay_position_num} = port index within the NIC
- module_type_pattern: "SFP28-25G-.*"
  module_type_is_regex: true
  name_template: "ens{slot}f{bay_position_num}"
  description: "Linux server — SFP28 25G systemd predictable naming (ens1f0, ens1f1, ...)"

# Mellanox QSFP28 hardware breakout → 4×25G sub-ports (eth0d1 .. eth0d4)
- module_type_pattern: "QSFP-100G-.*"
  module_type_is_regex: true
  name_template: "eth{bay_position_num}d{channel}"
  channel_count: 4
  channel_start: 1
  description: "Linux server — QSFP28 4×25G breakout, Mellanox-style (eth0d1..eth0d4)"

Scope your rules

Linux naming is highly environment-specific. Add a device_type scope to restrict each rule to the specific server model so rules for different hosts don't collide. See contrib/linux.yaml for annotated options.

Converter offset (CVR-X2-SFP)

A media converter (X2-to-SFP adapter) installs an SFP module inside an X2 port. The resulting Cisco IOS port number uses an arithmetic offset based on the parent bay position.

# SFP-1G-T in CVR-X2-SFP → GigabitEthernetSLOT/OFFSET
# Slot 3, parent bay 2, SFP slot 1 → GigabitEthernet3/11
- module_type: SFP-1G-T
  parent_module_type: CVR-X2-SFP
  name_template: "GigabitEthernet{slot}/{8 + ({parent_bay_position} - 1) * 2 + {sfp_slot}}"
  description: "SFP-1G-T in CVR-X2-SFP: offset port numbering"

The arithmetic expression {8 + ({parent_bay_position} - 1) * 2 + {sfp_slot}} is evaluated at rename time using a safe AST-based evaluator (no eval()).

Apply Rules — batch rename

The Apply Rules page shows all rules with a live Applicable indicator (✓ = at least one installed interface would be renamed). Click Preview & Apply to inspect affected interfaces before committing.

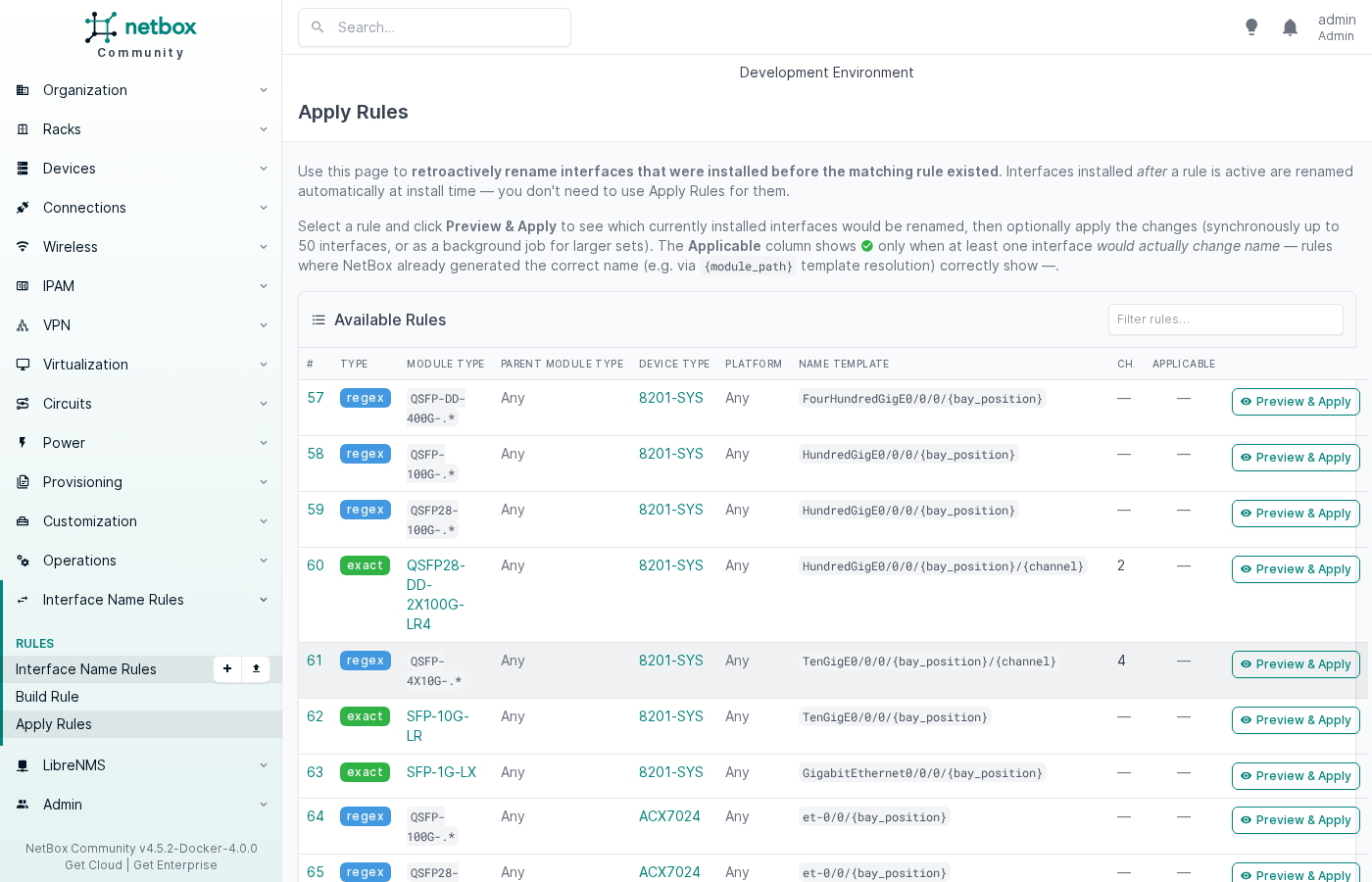

Apply Rules list showing regex and exact rules with Applicable column

Virtual Chassis port renaming

When multiple devices form a Virtual Chassis (stack), each member's interfaces need to reflect its position in the chassis. The plugin fires apply_device_interface_rules() on post_save of dcim.Device whenever the VC position changes, renaming all native device-type interfaces automatically.

Enable Applies to Device Interfaces on the rule. The Module Type Pattern field acts as a regex filter on interface names (not a module type selector) — the REGEX column shows a filter filter icon instead of a boolean.

Device-level rules list (filtered to VC rules)

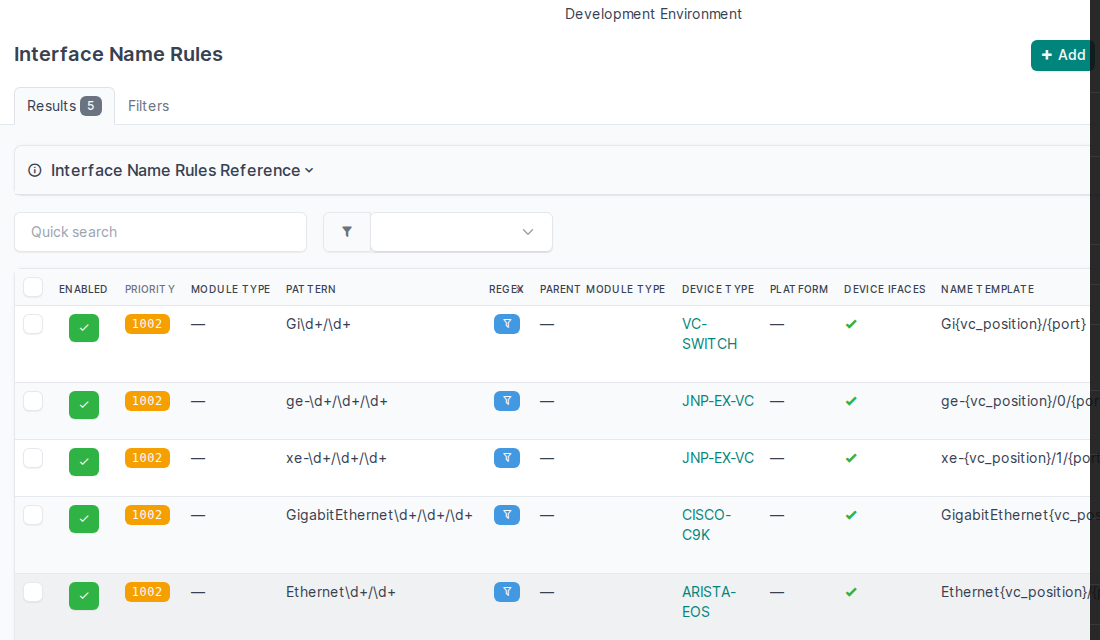

Rules list showing 5 device-level VC rules — filter icon in REGEX column, orange priority badge, green Device Ifaces checkmark

Juniper EX Virtual Chassis

Juniper VCs use 0-based member IDs. Interfaces follow the {prefix}-{member}/0/{port} scheme.

Pattern Name template Member 0 result Member 1 result
ge-\d+/\d+/\d+ ge-{vc_position}/0/{port} ge-0/0/0 ge-1/0/0
xe-\d+/\d+/\d+ xe-{vc_position}/1/{port} xe-0/1/0 xe-1/1/0
# Juniper EX — 1G access ports
- applies_to_device_interfaces: true
  device_type: "JNP-EX-VC"
  module_type_pattern: "ge-\\d+/\\d+/\\d+"
  name_template: "ge-{vc_position}/0/{port}"

# Juniper EX — 10G uplinks
- applies_to_device_interfaces: true
  device_type: "JNP-EX-VC"
  module_type_pattern: "xe-\\d+/\\d+/\\d+"
  name_template: "xe-{vc_position}/1/{port}"

jnp-vc-2 at VC position 1 — interfaces renamed ge-0/0/N → ge-1/0/N, xe-0/1/N → xe-1/1/N:

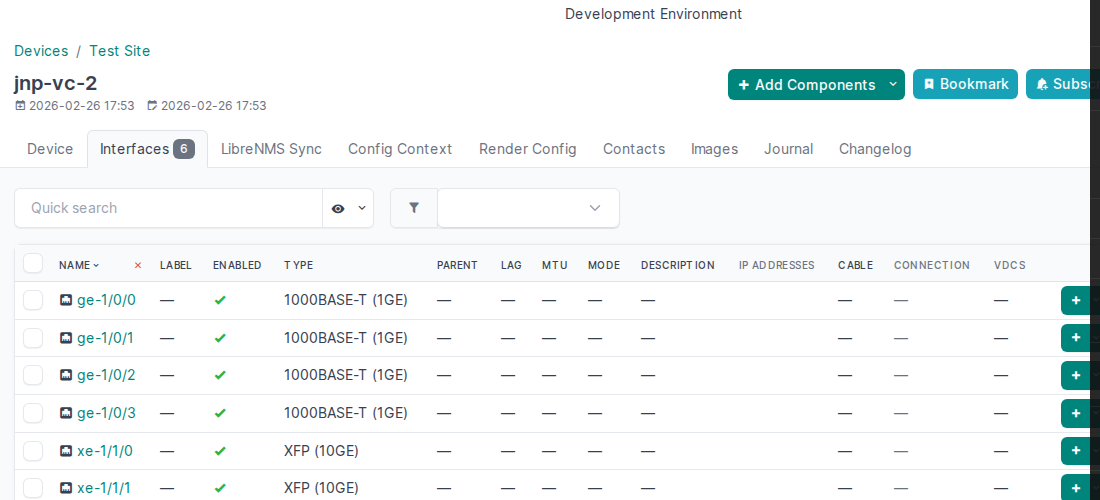

jnp-vc-2 interfaces page showing ge-1/0/0 through ge-1/0/3 and xe-1/1/0, xe-1/1/1 after VC position 1 renaming

Cisco Catalyst 9000 Stack

Cisco stacks use 1-based member IDs. Templates create GigabitEthernet1/0/N; on joining the stack at position 2, ports become GigabitEthernet2/0/N.

- applies_to_device_interfaces: true
  device_type: "CISCO-C9K"
  module_type_pattern: "GigabitEthernet\\d+/\\d+/\\d+"
  name_template: "GigabitEthernet{vc_position}/0/{port}"

cisco-sw-2 at VC position 2 — interfaces renamed GigabitEthernet1/0/N → GigabitEthernet2/0/N:

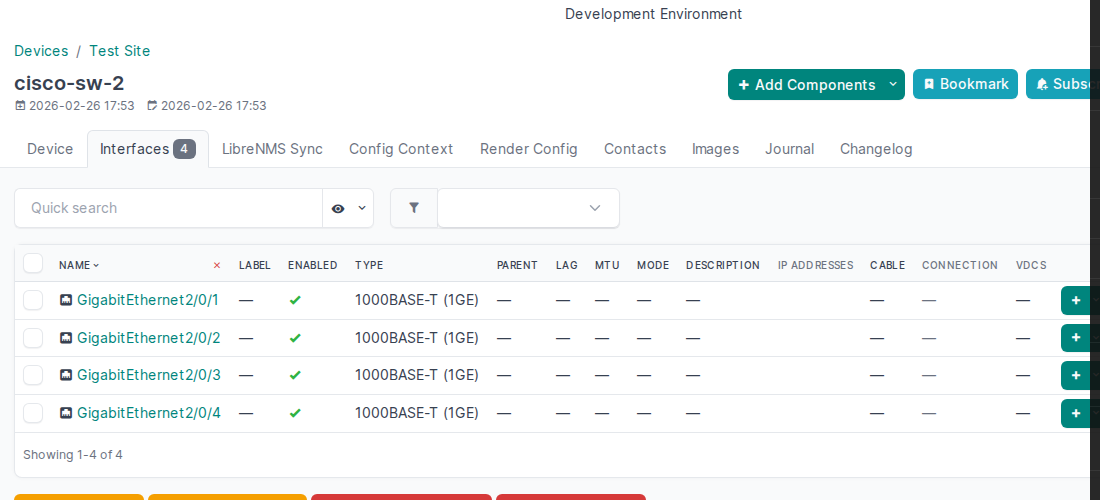

cisco-sw-2 interfaces page showing GigabitEthernet2/0/1 through GigabitEthernet2/0/4

Arista EOS

Arista modular/multi-chassis naming uses Ethernet{slot}/{port}. The device type creates templates Ethernet1/1 … Ethernet1/N; at VC position 2 they become Ethernet2/1 … Ethernet2/N.

- applies_to_device_interfaces: true
  device_type: "ARISTA-EOS"
  module_type_pattern: "Ethernet\\d+/\\d+"
  name_template: "Ethernet{vc_position}/{port}"

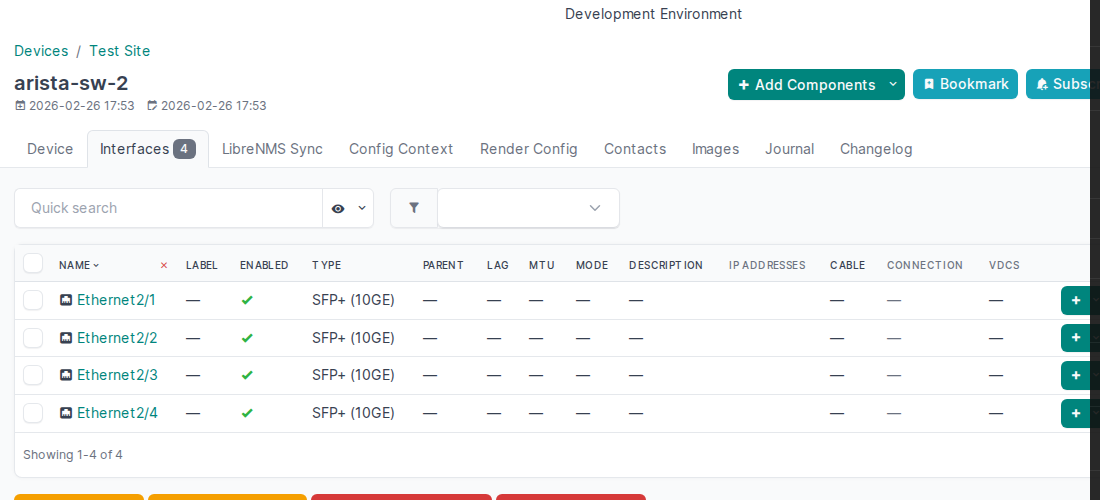

arista-sw-2 at VC position 2 — interfaces renamed Ethernet1/N → Ethernet2/N:

arista-sw-2 interfaces page showing Ethernet2/1 through Ethernet2/4

Re-apply after initial load

If devices were added to the VC before rules were loaded (e.g. during bulk provisioning), the signal fires before the rules exist. Force a re-apply with:

from dcim.models import Device
from netbox_interface_name_rules.engine import apply_device_interface_rules

for dev in Device.objects.filter(virtual_chassis__isnull=False):
    apply_device_interface_rules(dev)
